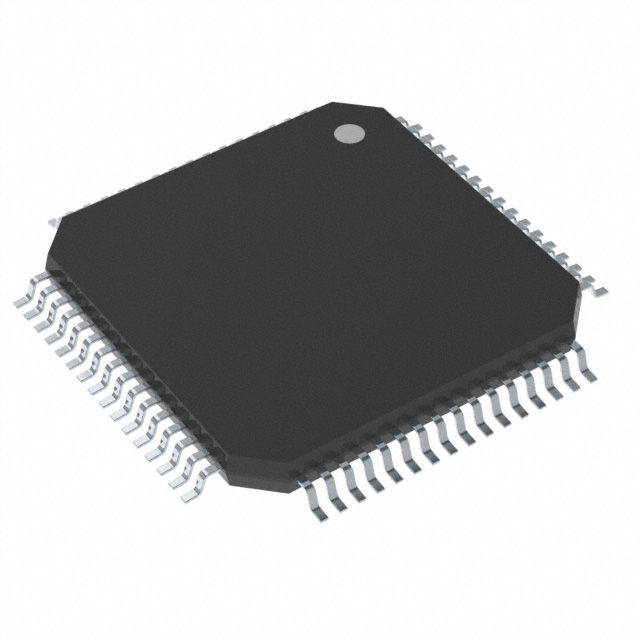

- Product Model L99UDL01TR
- Brand STMicroelectronics
- RoHS Yes
- Description IC HALF BRIDGE DRIVER 64TQFP
- Categories Full Half-Bridge (H Bridge) Drivers
-
PDF
- In Stock 3095
Technical Details
- Features Charge Pump, Status Flag
- Package / Case 64-TQFP Exposed Pad
- Mounting Type Surface Mount
- Interface Logic, PWM, SPI
- Operating Temperature -40°C ~ 175°C (TJ)
- Output Configuration Half Bridge (6)
- Voltage - Supply 6V ~ 18V
- Rds On (Typ) 90mOhm LS + HS
- Applications General Purpose
- Technology MOSFET (Metal Oxide)
- Voltage - Load 6V ~ 18V
- Supplier Device Package 64-TQFP (10x10)
- Fault Protection Over Current, Over Temperature
- Load Type Capacitive and Resistive
- Grade Automotive
- Qualification AEC-Q100
- ECCN EAR99
- HTSUS 8542.39.0001
- Moisture Sensitivity Level (MSL) 3 (168 Hours)
- REACH Status REACH Unaffected
- RoHS Status ROHS3 Compliant
